5G SENS Battery disposal
Polymer Li-ion Battery 904059 | Energizer L91 | |
|---|---|---|
Contained substances | LiCoO2, C, PVDF, SP, AL, Cu, LiPF6 | Li-Al, PC, DME, DOL, Lithium Perchlorate, C, Fe, AL, Acetylene black, PP, Adhesive CMC, Adhesive, SBR FeS2 |
Type of battery | secondary cell (rechargeable) | primary cell (non-rechargeable) |
5G SENS equipped with rechargeable LiPo battery

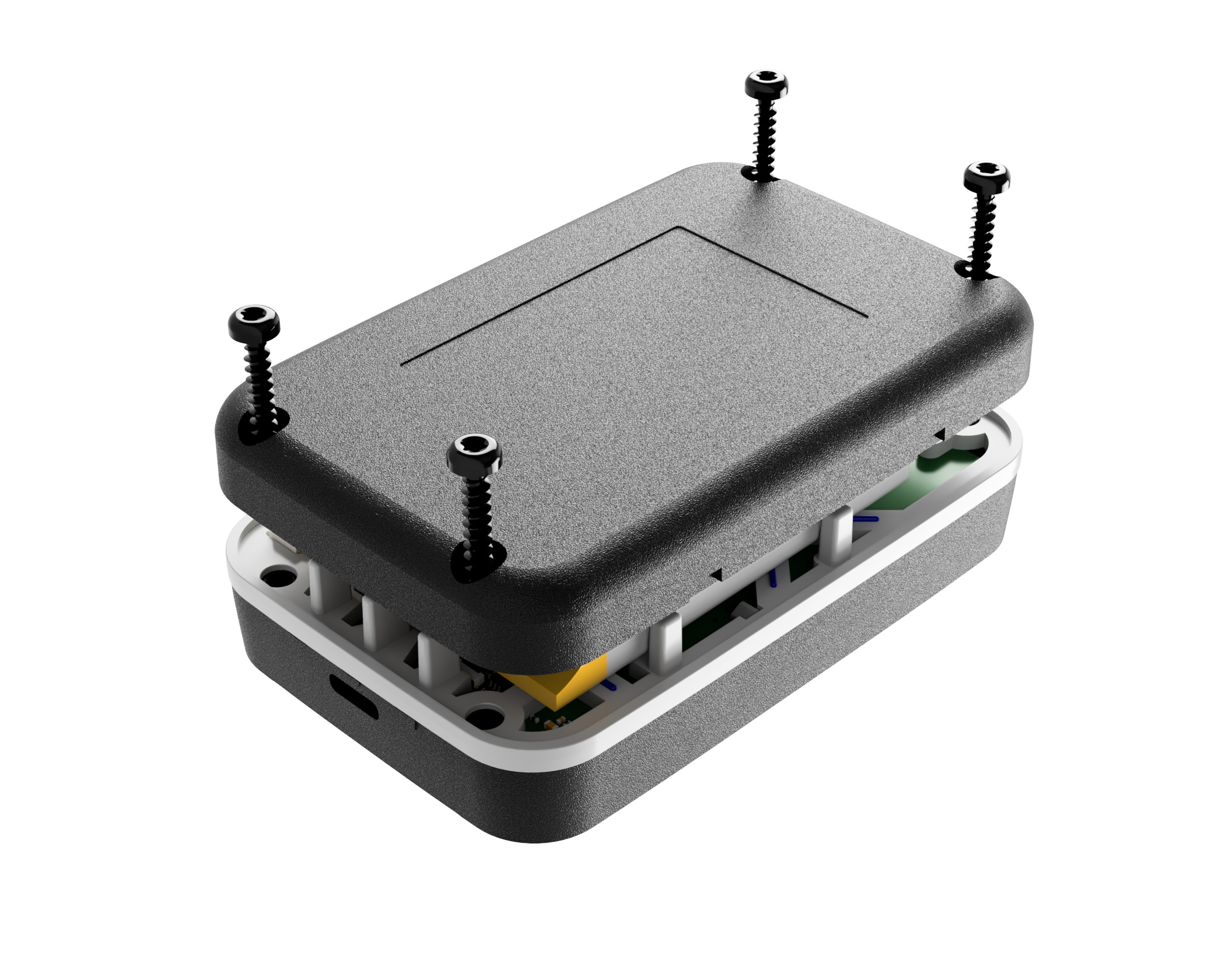

Unscrew the enclosure of the side with the label and lift off the enclosure

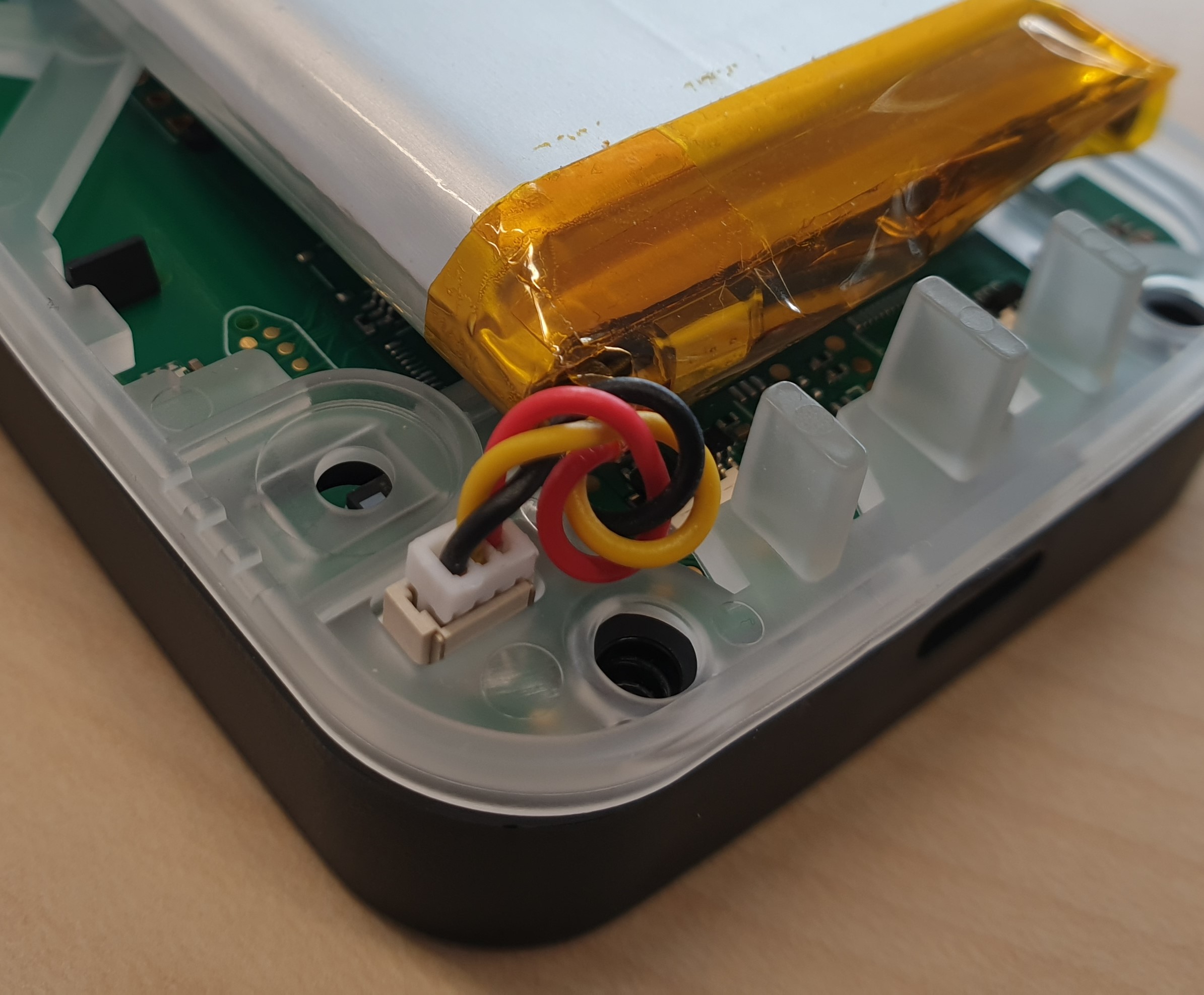

Remove the plug of the battery cable

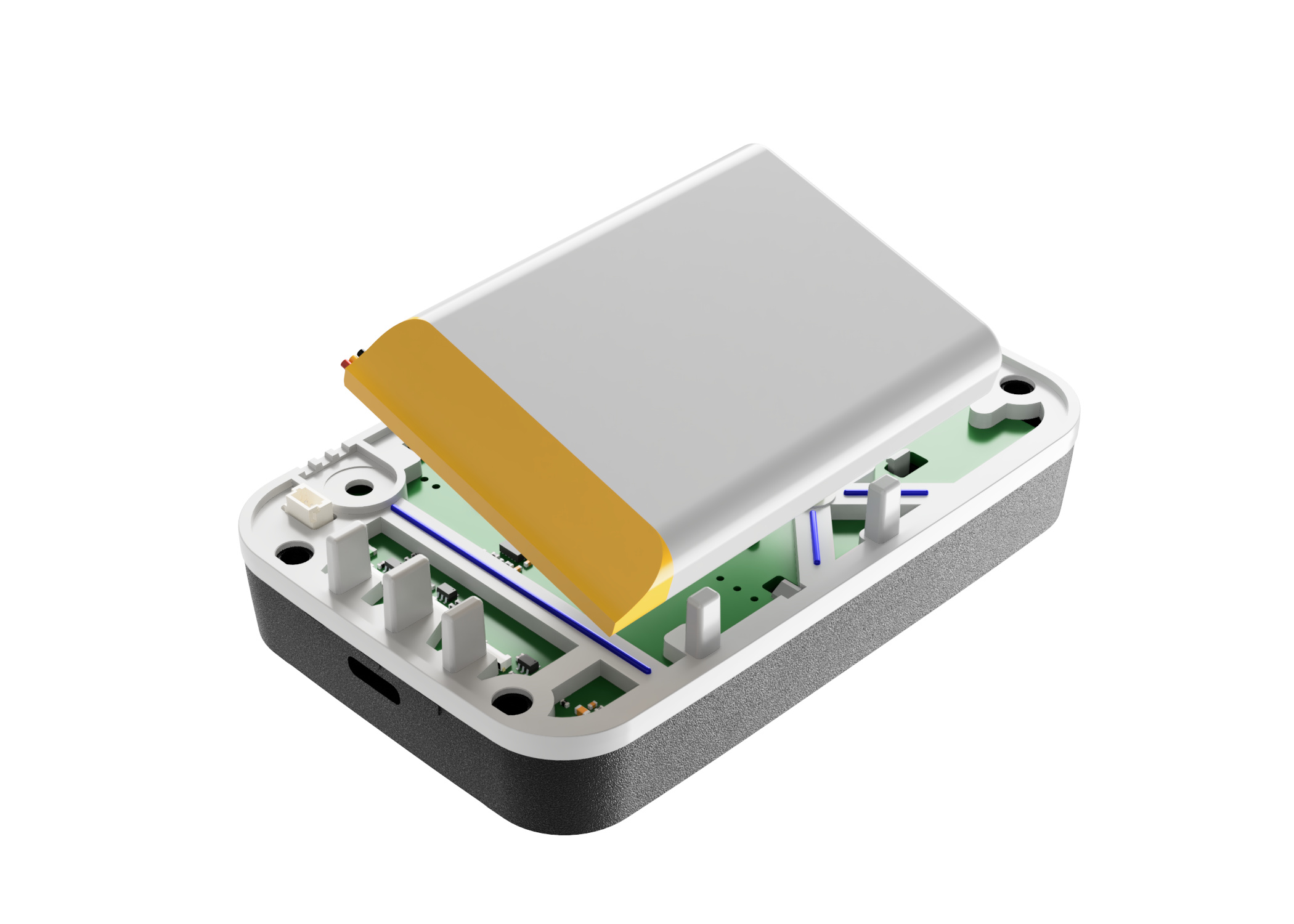

Lift the battery from the sealing layer
5G SENS equipped with a battery

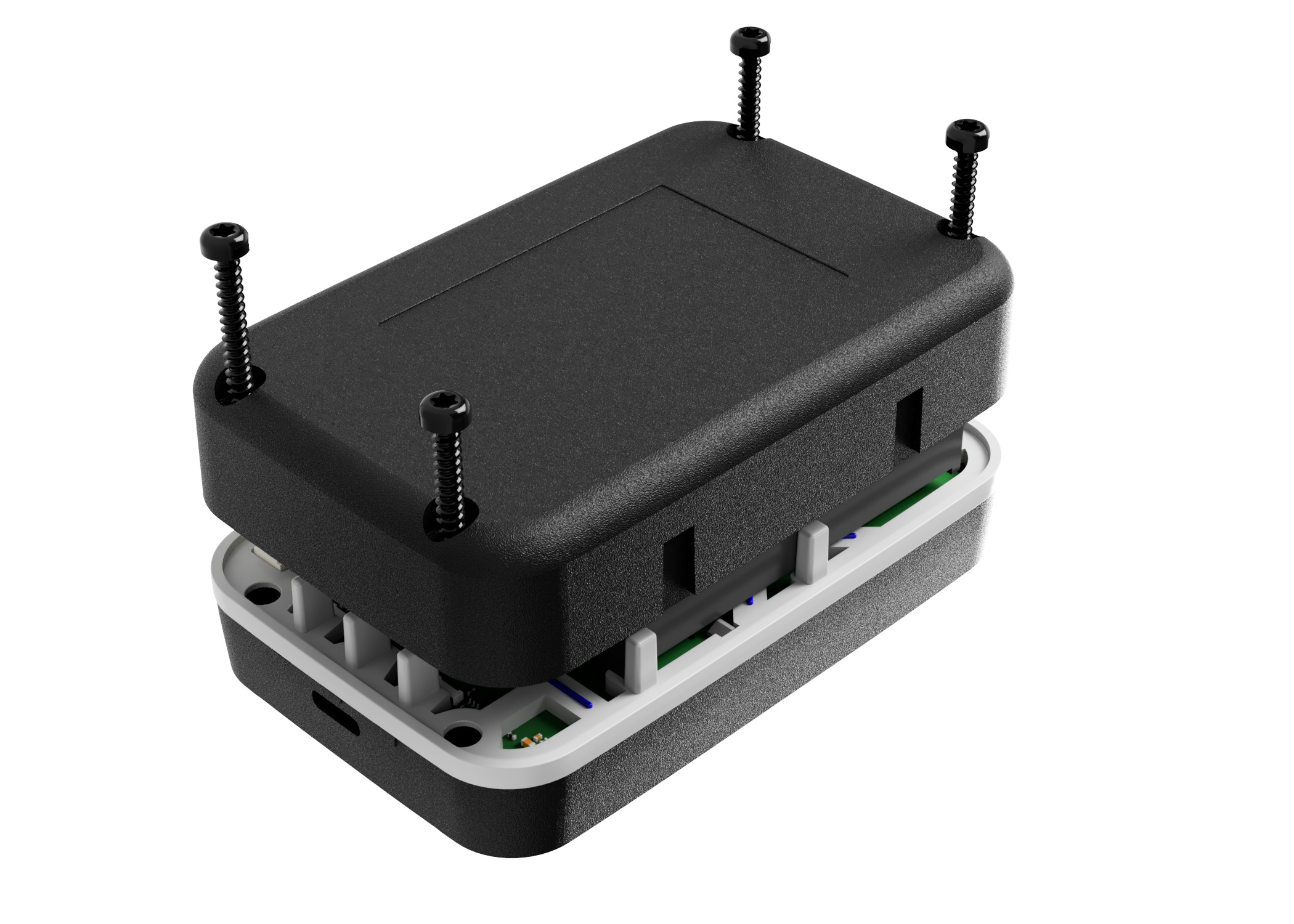

Unscrew the enclosure of the side with the label and lift off the enclosure

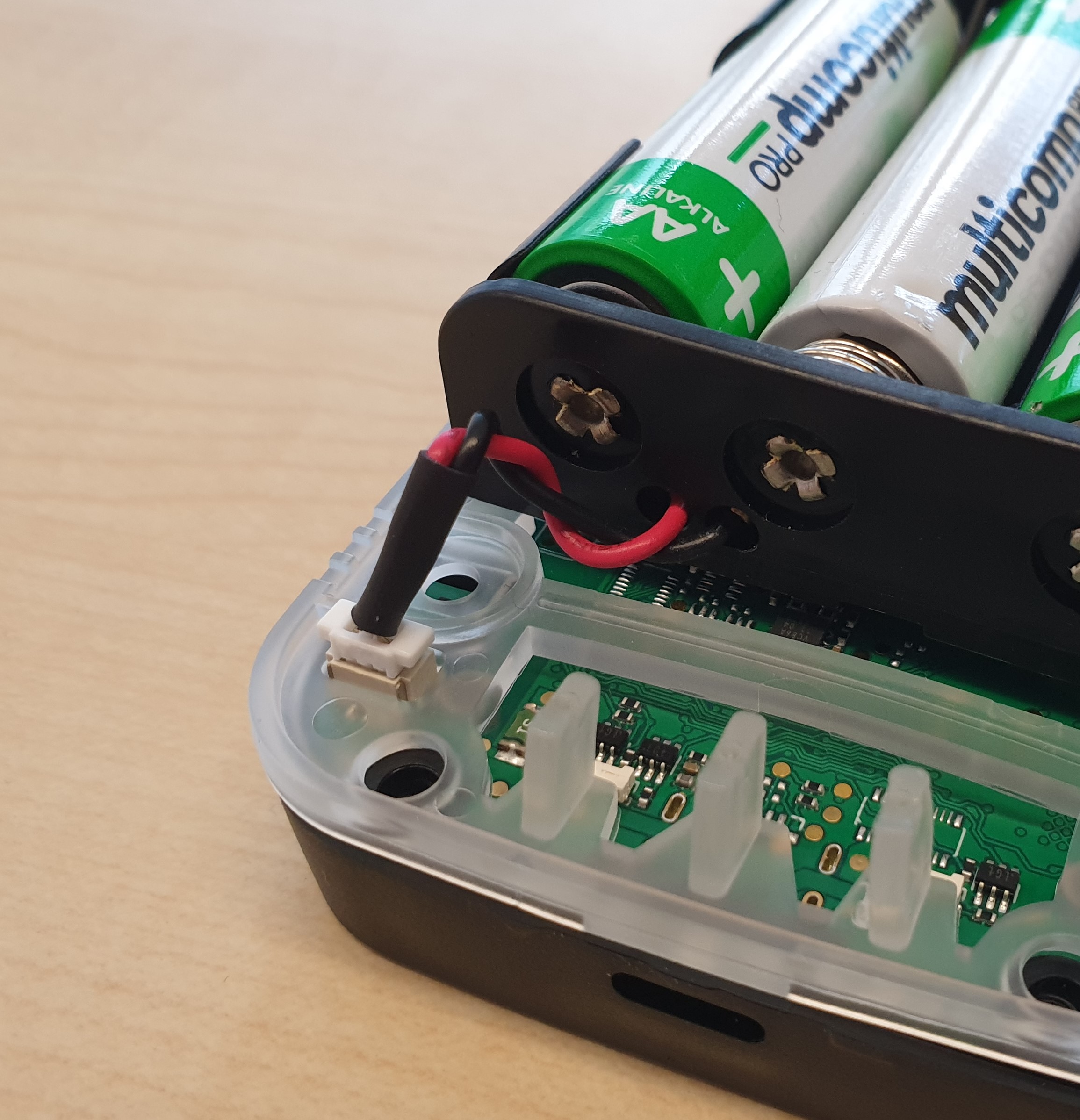

Remove the plug of the battery cable

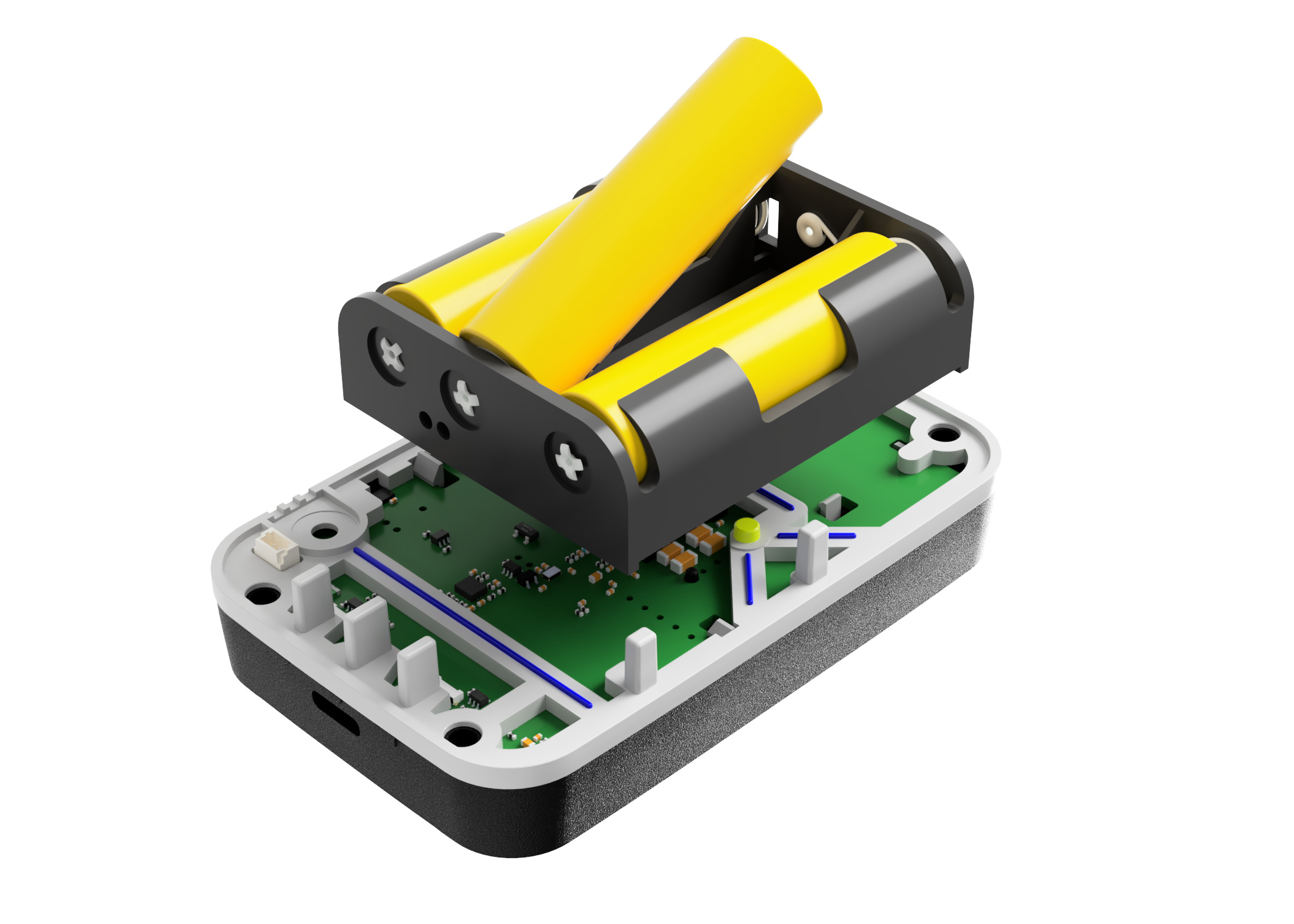

Lift the battery holder from the sealing layer
Take the batteries out of the battery holder
Reverse the steps to reassemble the device. Make sure that the cable is not damaged by the housing edges.
